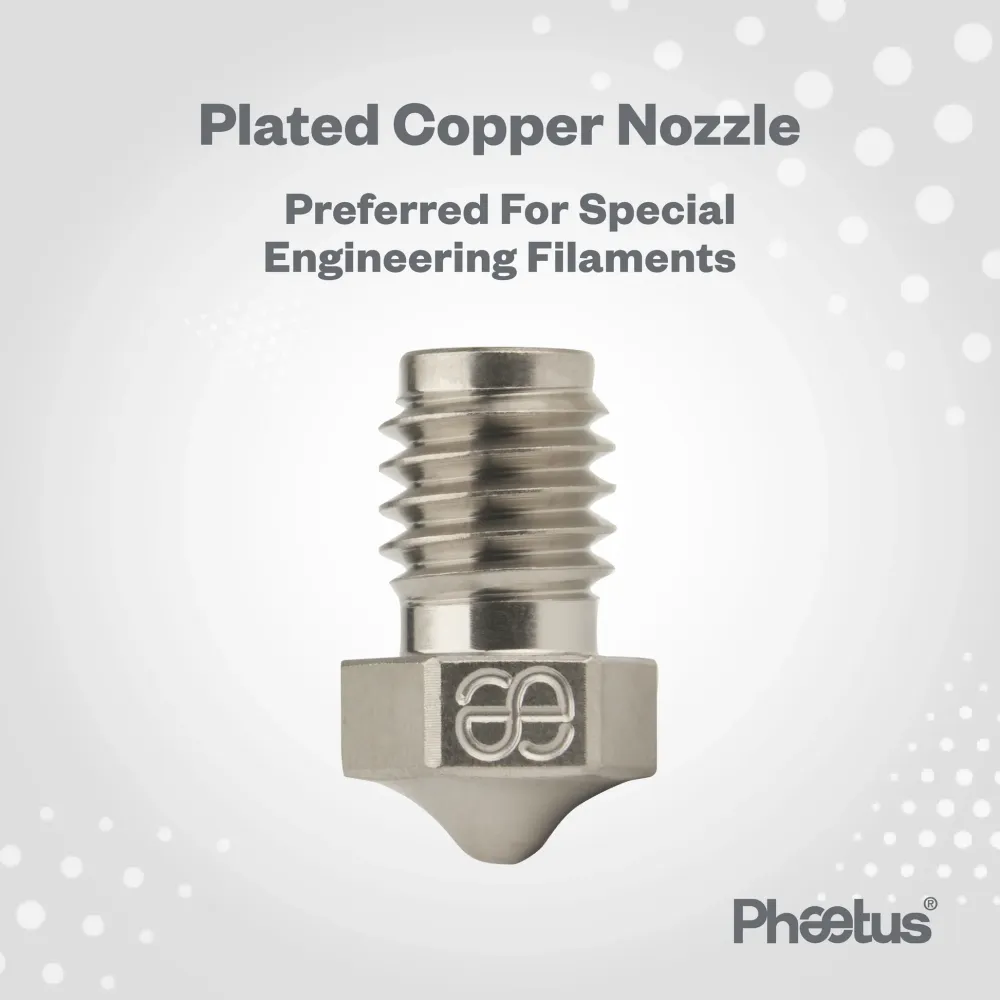

Plated Copper Nozzle 0.5mm/1.75mm

Plated Copper Nozzle 0.5mm/1.75mm

Nickel plated copper nozzle (M6) suitable for 1.75mm filament.
Working well for high temperature applications, printing with filaments such as PEEK, PEKK, PEI, PSU, PPSU and etc.
P/N: 1100-07A-15-03

Compatible with:

  • Phaetus Dragon (ST/HF)
  • Slice Mosquito
  • E3D V6 and others
Phaetus
PH-NZL-CPP-0.4-1.75
14 Items
Hurry up! only 14 items left in stock!
€9.95
Tax included

Performance Analysis

Temperature resistance up to 500℃, the best choice for special engineering plastics such as PEEK. High thermal performance keeps an even temperature of nozzle tip during printing, thus guaranteeing a stable extrusion; Meanwhile, further improves printing speed without sacrificing the quality. Special processing technology and post-treatment make the nozzle without burr at the edge of tip and debris in the hole. Inner hole roughness lower than Ra0.4 and the whole nozzle nickel plated, enhanced higher smoothness and less adhesion. Superior quality copper alloy with high strength and high thermal conductivity ensures the stability of performance.

Applicable Filament

Working well for high temperature applications, printing with materials such as PEEK, PEKK, PEI, PSU, PPSU and etc.

Product Features

  • Orifice Diameter: φ0.40 mm
  • Tolerance: ±0.01 mm
  • Inner Hole Roughness: ≤Ra0.4μm
  • Concentricity: ≤0.02mm
  • Hardness (Mohs): 6
  • Printing Max Temp.: 500°C
  • Thermal Conductivity: 330W/m·K
  • Expansion Coefficient: 16.7µm/m·°C

NB! Not suitable for filaments containing abrasive additives:

  • Carbon fibre composites
  • Glass fibre composites
  • Glow in the dark / Phosphorescent
  • Wood/Metal fill
PH-NZL-CPP-0.4-1.75
14 Items
